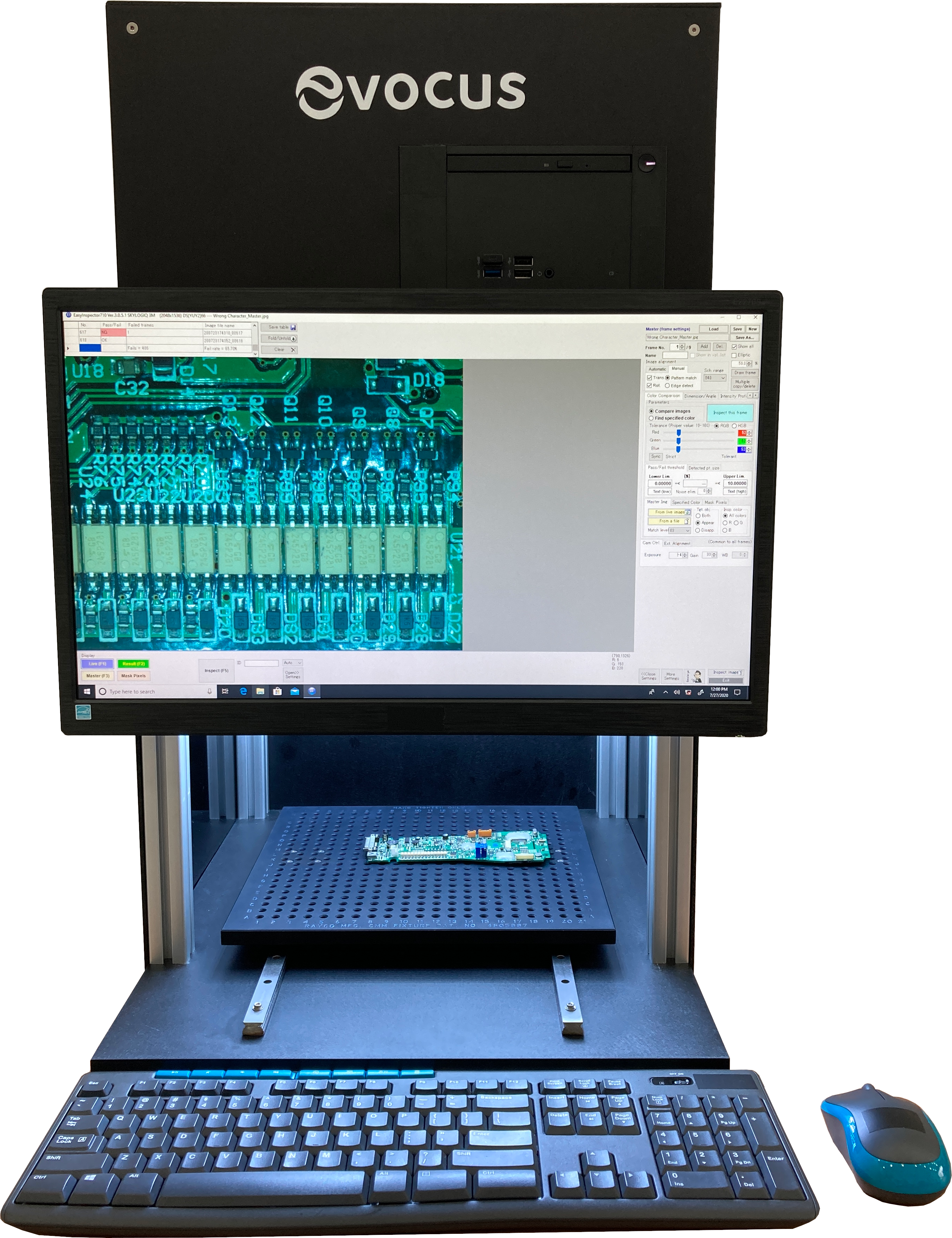

Evocus Smart Vision Inspection System e-Check Series
Evocus Smart Inspection System e-Check provide simple inspection system with one click/button operation by MSP Metrology (M) Sdn Bhd from Evocus Korea
Features
e-Check
Smart Vision Inspection System
- Simple Inspection System
- Compare sample on one by one method
- Judgement by system after setup master image
- One click/button operation
- Fast speed with consistent performance
- Clear direction of inspection requirement
- Solve communication breakdown between superior & operators
- Tackle turnover issue due to incapable in pass down knowledge
- Many upgradable features & customizable solution
E-CHECK UNIQUE FEATURES
Specifications
| Model | e-Check | |
| Inspection Range | X-axis | Standard: 90mm, (Optional: 35mm) |
| Y-axis | Standard: 67mm, (Optional:26.5mm) | |
| Magnification | Standard: 3.5x, (Optional: 8.5x) | |
| Repeatability | Up to 99% (Subject to inspection application) | |
| Sample Size Allowable | 350mm(L) x 300mm(W) x 160mm(H) | |
| Sample Weight Allowable | 20kg | |
| C-Mount Lens | Aperture | Standard |
| Focal Length | 12mm – 36mm | |
| Transmitted Illumination | Voltage 240V, AC50/60Hz, transmitted by 60 white colour LED with diffuser |
|
| Monitor | Full HD LED 21” or above | |
| CPU | Intel® Core™ i5@2.4GHz, (5th generation or above) | |
| Dimension | With keyboard & mouse | 600mm(L) x 740mm(W) x 730mm(H) |
| Without keyboard & mouse | 505mm(L) x 520mm(W) x 730mm(H) | |
| Weight | 35kg | |

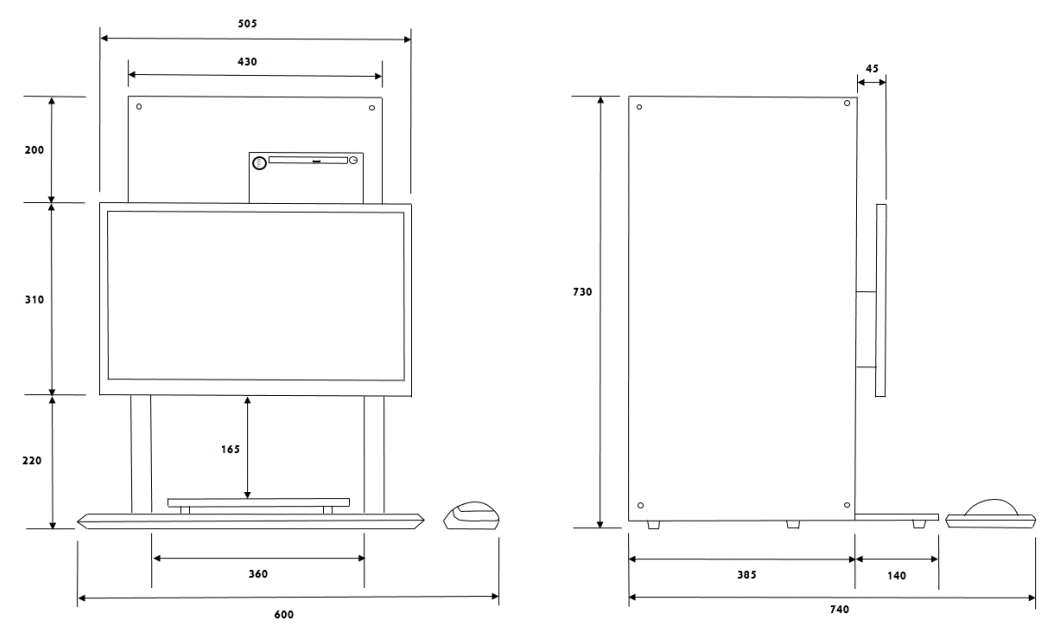

Dimension
