n manufacturing and quality inspection, two common training topics are Coordinate Measuring Machine (CMM) operation and Geometric Dimensioning & Tolerancing (GD&T). Both are valuable skills, but many engineers and inspectors do not realize that GD&T knowledge is actually the foundation behind effective measurement and inspection.
Understanding GD&T helps professionals interpret drawings correctly before performing any measurement using a CMM or other inspection tools.
Essential Geometric Dimensioning & Tolerancing (GD&T) – (HRDC PUBLIC COURSE)
What is CMM Training?
A Coordinate Measuring Machine (CMM) is a precision inspection machine used to measure the geometry of manufactured parts.
CMM training typically focuses on:
-
Operating the CMM machine
-
Running measurement programs
-
Collecting dimensional data
-
Generating inspection reports

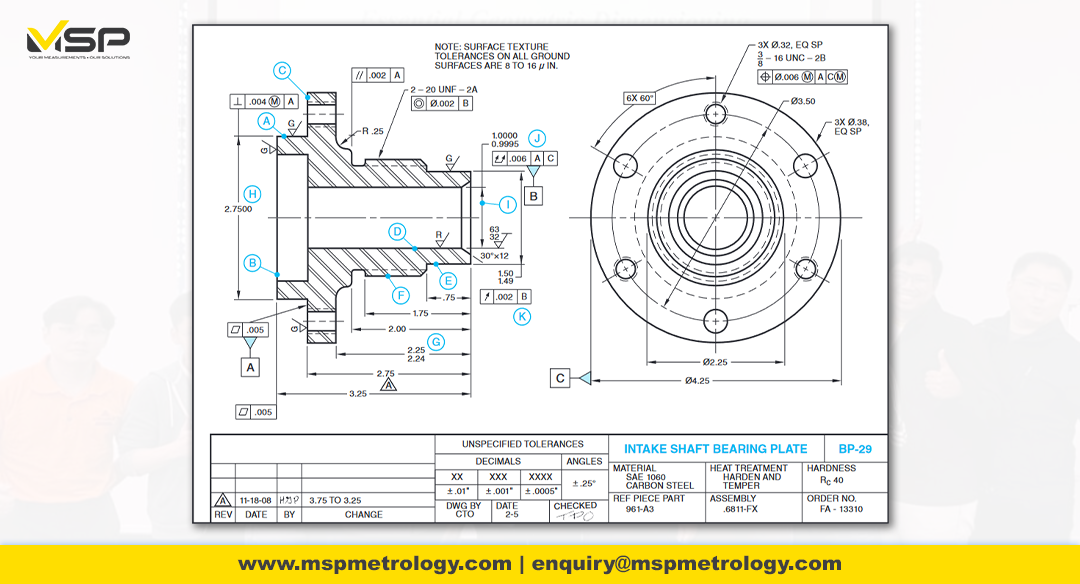

(GD&T Drawing from – https://www.chegg.com/)
What is GD&T Training?
Geometric Dimensioning and Tolerancing (GD&T) is a standardized system used in engineering drawings to define how much variation is allowed in a part’s geometry.
It helps engineers understand:
-
Feature position and orientation
-
Datum reference systems
-
Form and profile tolerances
-
Functional relationships between features
Why GD&T Training Is More Important
(GD&T Drawing from – https://www.chegg.com/)
1. GD&T Explains What Should Be Measured
A CMM can measure dimensions, but GD&T explains what needs to be measured and how it should be evaluated.
Without GD&T knowledge, operators may collect measurement data but fail to interpret whether the part actually meets functional requirements.
(GD&T Drawing from – https://www.chegg.com/)
2. GD&T Improves Understanding of Engineering Drawings
GD&T training helps engineers and inspectors read complex drawings with confidence.
They can understand tolerance zones, datums, and feature relationships, which are critical for proper inspection.
3. GD&T Supports Better Quality Decisions
CMM machines provide measurement results, but GD&T knowledge helps professionals interpret those results correctly.
This allows quality engineers and metrologists to determine whether a part truly meets design intent.
4. GD&T Knowledge Applies to Many Measurement Tools

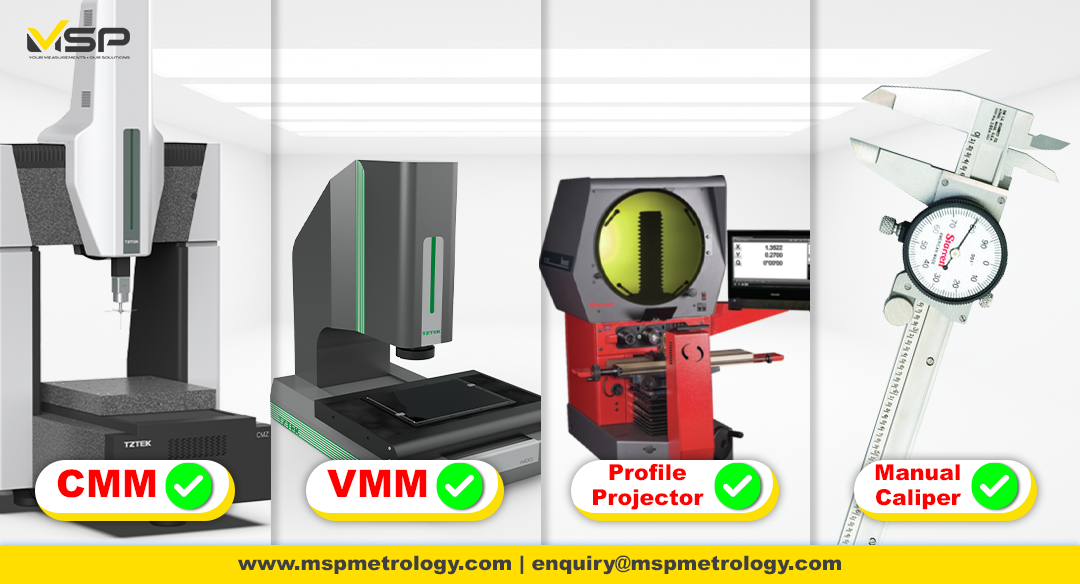

CMM training focuses on one specific machine. GD&T knowledge, however, applies to many inspection methods, including:
-
CMM measurement
-
Vision measuring systems
-
Surface and profile testers
-
Manual gauges and fixtures
This makes GD&T a more versatile and transferable skill.
5. GD&T Strengthens Career Opportunities
Professionals with strong GD&T knowledge often take on roles such as:
-
Quality Engineer
-
Metrologist
-
Inspection Specialist
-
Manufacturing Engineer
Because GD&T supports both design and inspection, it is considered a core technical skill in modern manufacturing.
Conclusion
Both CMM training and GD&T training are useful in manufacturing. However, GD&T provides the fundamental knowledge needed to understand engineering drawings and evaluate part quality correctly.
While CMM training teaches how to operate a measurement machine, GD&T training teaches why and how parts should be measured in the first place.
For engineers, inspectors, and metrologists, developing strong GD&T knowledge is a key step toward improving inspection accuracy, product quality, and professional expertise.
