In modern engineering and manufacturing, traditional measurement tools like calipers and coordinate measuring machines (CMMs) are no longer enough to keep up with complex parts and fast-paced production cycles.
3D metrology — combining scanning hardware and powerful software — has emerged as the new standard for capturing, analyzing, and validating parts with unmatched precision and flexibility.
What is a 3D Metrology Scanner?

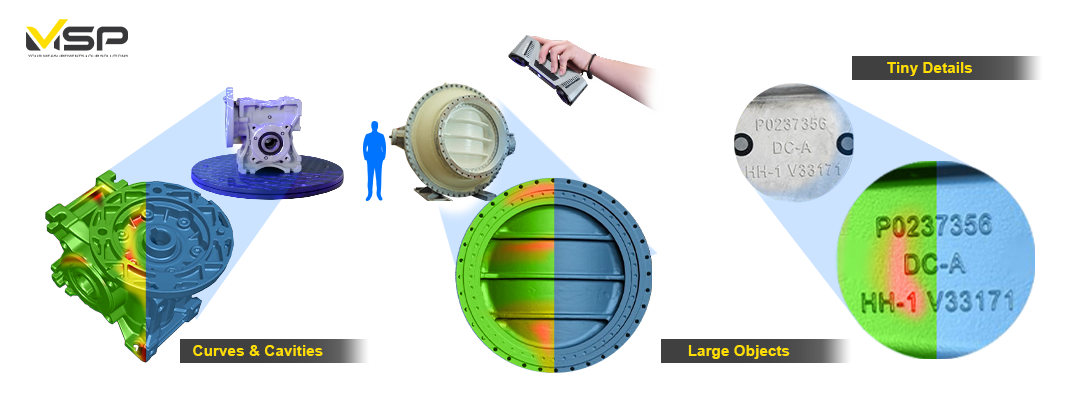

A 3D scanner uses optical tracking, structured light, or laser triangulation to capture a dense point cloud or mesh of an object’s surface. This enables measurement of complex curves, deep cavities, weld seams, and features that conventional probes often miss.

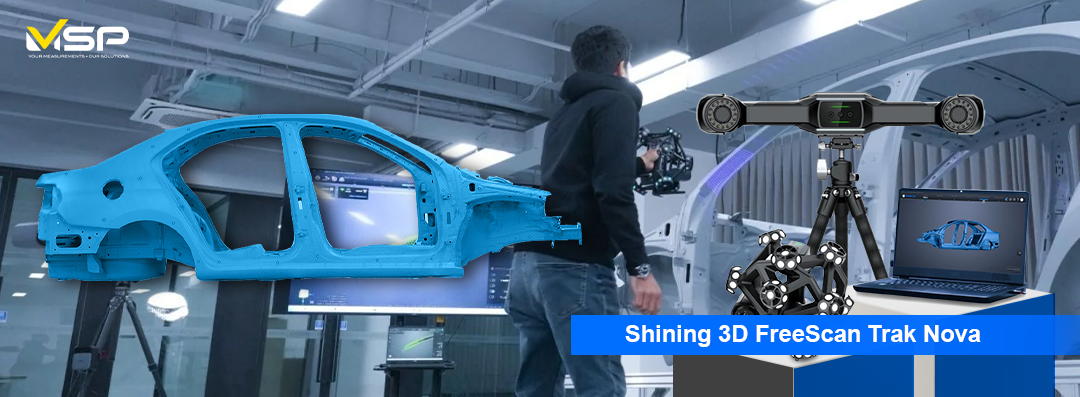

For example, Shining 3D’s FreeScan Trak Nova offers wireless dynamic tracking, letting you scan large, complex components without cumbersome fixtures. The scanner transforms real-world parts into digital models with high accuracy.
Software: From Mesh to Insight
Raw scan data needs interpretation — that’s where software comes in. Two flagship tools in metrology are:
-

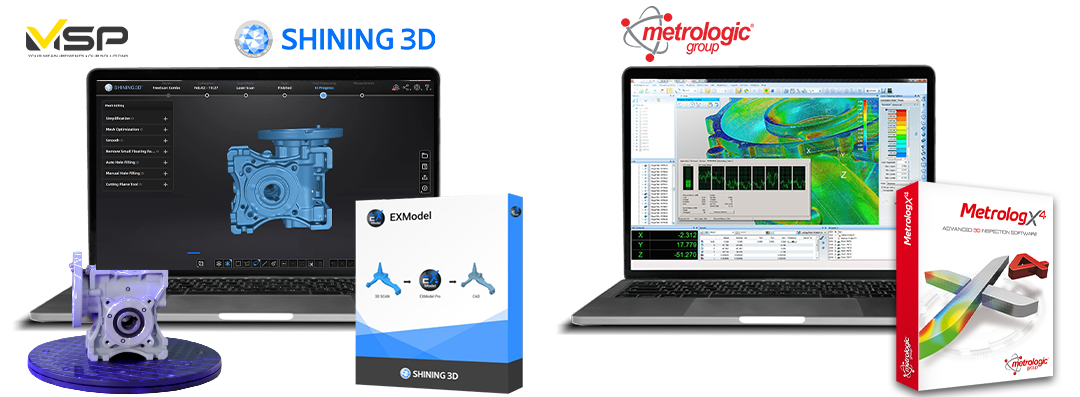

EXModel by Shining 3D – Software for Reverse Engineering
A scan-to-CAD engine that lets you convert mesh data into editable CAD models. It is tightly integrated with Shining’s scanning ecosystem, allowing one-click transfer from scanning workflows into reverse engineering. -
Metrolog X4 Inspection – Software for GT&T Inspection by Metrologic –
A universal inspection platform supporting diverse hardware (CMMs, arms, scanners) and large datasets. It delivers advanced GD&T analysis, point cloud handling, automatic reporting, and CAD-to-inspection workflows.
Together, these tools enable you to scan, process, analyze, and report with efficiency and traceability.
Industrial Applications That Benefit
3D metrology is indispensable for sectors where every micron counts:

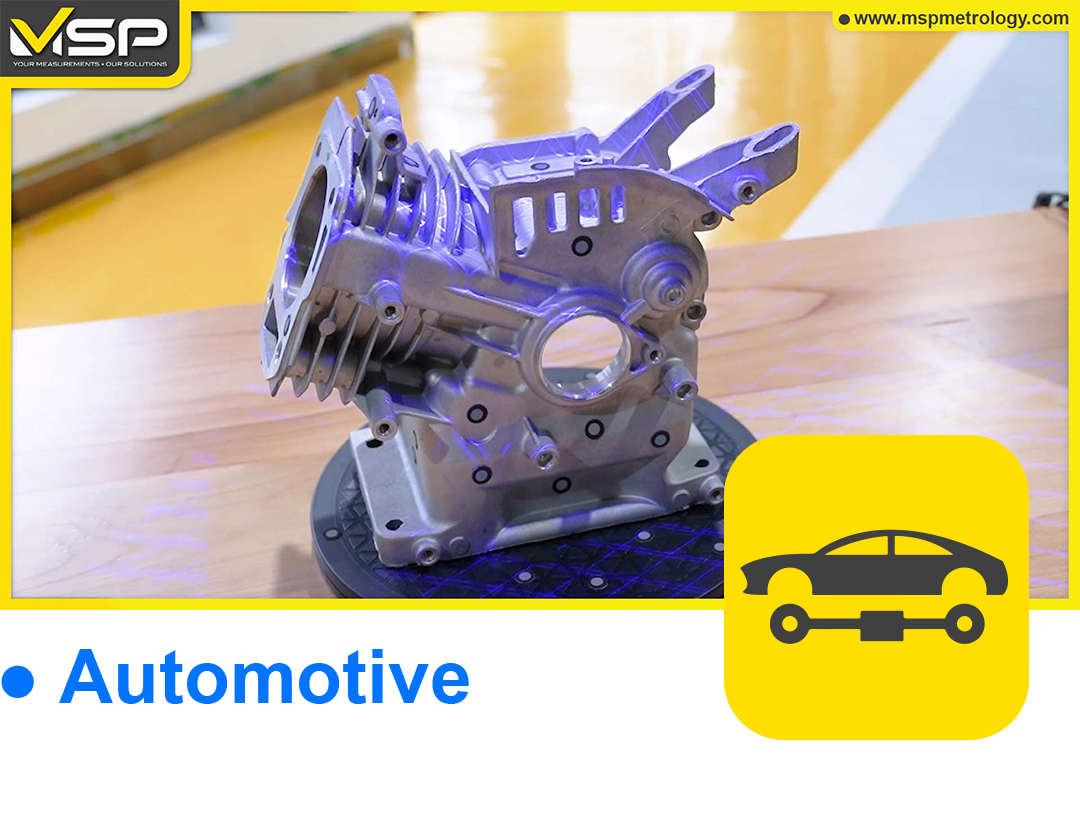

- Automotive – Ensure tight tolerances with fast, accurate 3D scanning for complex parts like panels, castings, and engine components. Ideal for prototyping, quality checks, and CAD validation.

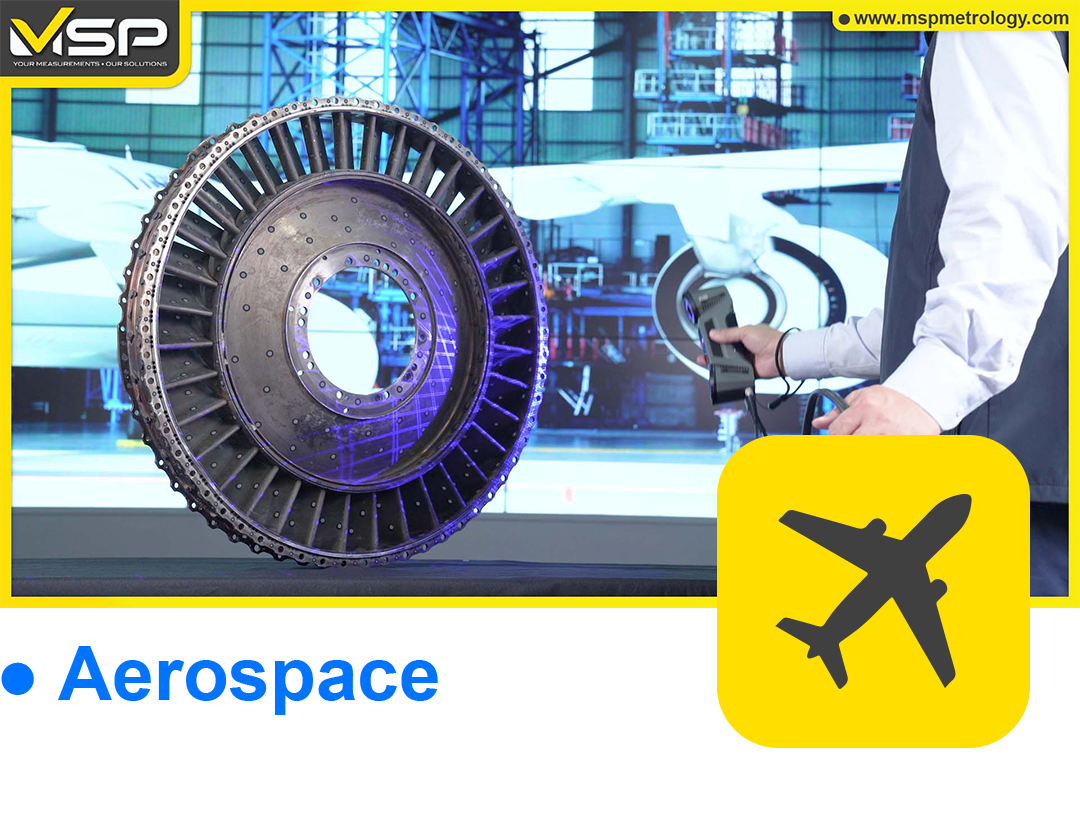

- Aerospace – Achieve micron-level accuracy on critical components without disassembly. Perfect for reverse engineering, inspection, and MRO workflows.

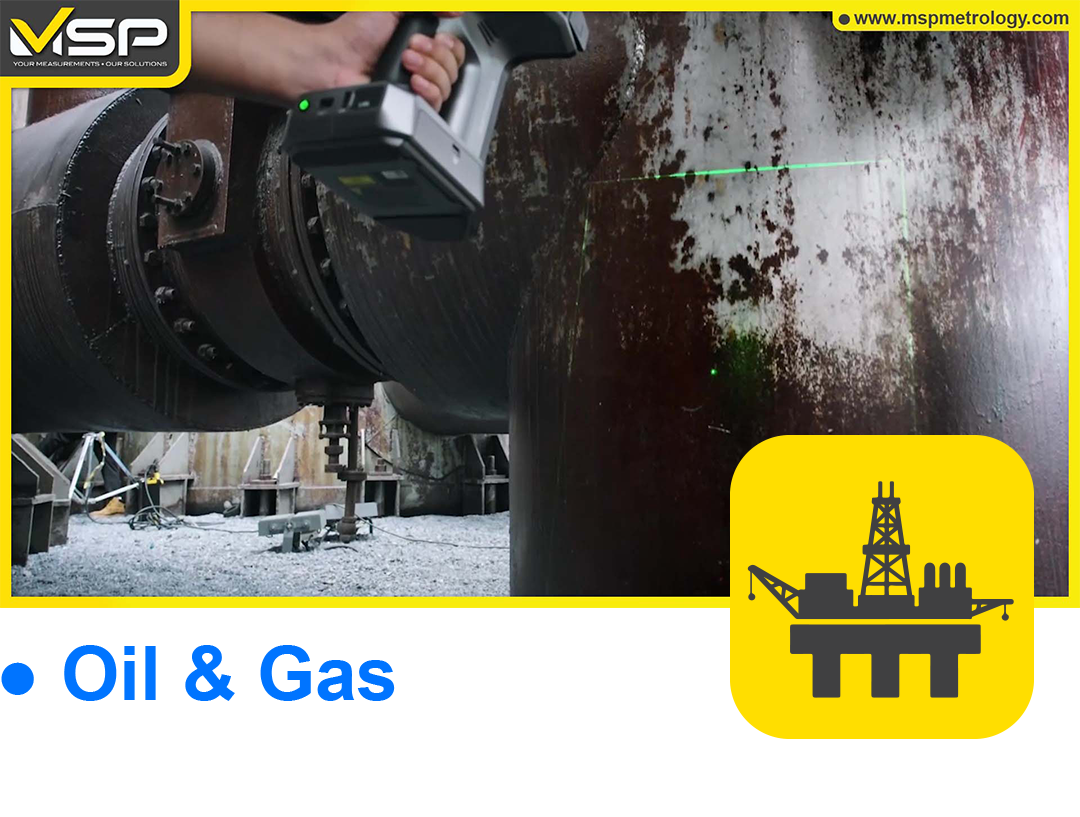

- Oil & Gas – Capture large structures in the field for maintenance, wear analysis, or retrofitting — all without removal. Minimize downtime and improve safety.

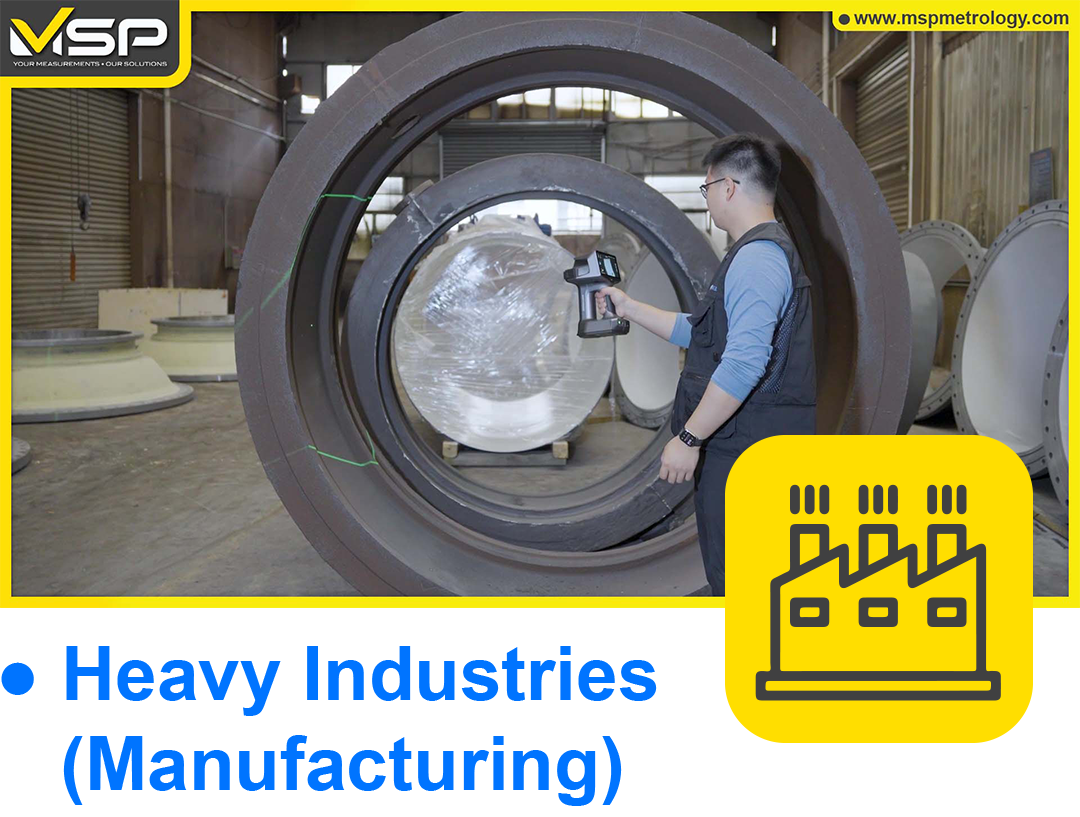

- Heavy Industries – Inspect massive components in situ. 3D scanning supports alignment, fabrication checks, and reverse engineering where CMMs can’t reach.

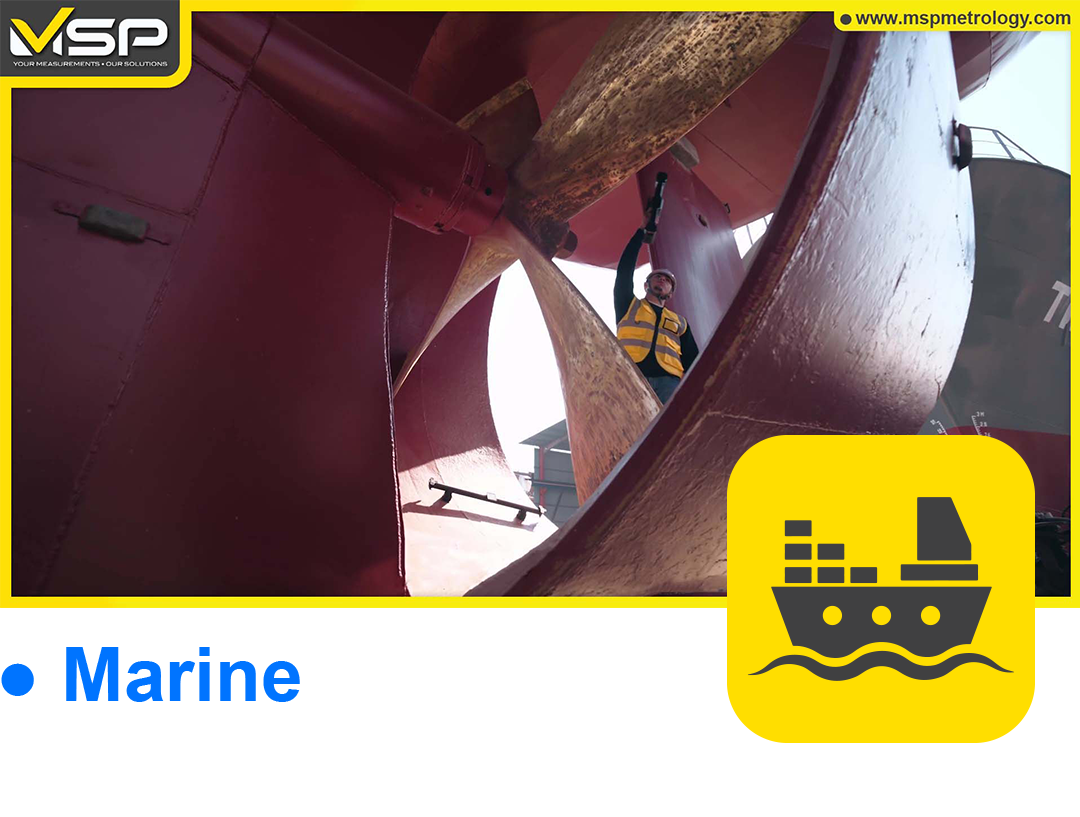

- Marine – Digitize large, curved marine structures with precision. Ideal for hull inspections, propeller analysis, and retrofitting work — even in challenging dockyard environments.
Traditional metrology often requires dismantling, extensive fixturing, or multiple setups — 3D scanning overcomes those constraints.
MSP Metrology’s Role in Malaysia
As an authorized partner and solutions provider, MSP Metrology (M) Sdn Bhd bridges technology and industry with:
-
✅ Supply & Integration of 3D scanning systems (Shining 3D’s FreeScan, EinScan lines)
-
✅ 3D Scanning & Measurement Services — inspections, reverse engineering, digital archiving carried out by trained experts
Whether you want to bring 3D scanning in-house or outsource measurement tasks, MSP provides full support from consultation to deployment.
