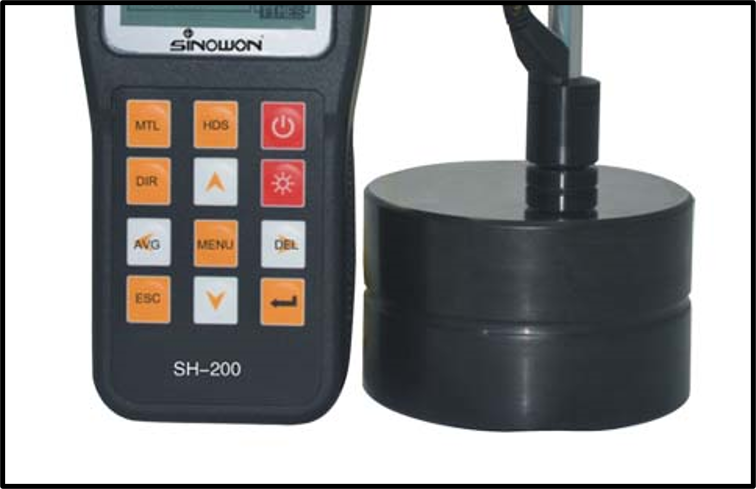

Sinowon Portable Leeb Hardness Tester SH-200 Series
Sinowon SH-200 portable leeb hardness tester with impact device provides testing at any angle, even upside down for all metallic materials by MSP Metrology (M) Sdn Bhd from Sinowon China
Features
Direct Display of Hardness Scale
SH-200 takes hardness measurement scales including HL, HV, HB, HRC, HS, and HRB. The direct display LCD also offer back-light functions and auto-clock.
The Direction is not a Matter
The impact device provides testing at any angle, even upside down with the ability to test for all kind of metallic materials.
Large Storage of Memory
Large memory for up to 500 groups test result. Able to set the statistical data and upper-lower limit setting and a RS232 interface for hyperterminal or dataview software.
Product Features
-
Large memory for 500 groups test results;
-
Auto-recognition of connected Impact Device;
-
Auto-recognition of Impact Device test direction;
-
RS-232 interface (to hyperterminal or data view software);
-
Time and date setting; auto-clock;
-
Back-light LCD;
-
Direct display of hardness scales HRB, HRC, HV, HB, HS, HL;
-
Conversion to tensile strength σb (U.T.S.);
-
For all metallic materials;
-
Impact device provides testing at any angle, even upside down;
- High accuracy ±6HLD and conforms to ASTM A 956;
Full Specifications
| Product Name | Portable Leeb Hardness Tester |
| Model | SH-200 |
| Code# | 852-120 |
| Hardness Scale | HL,HRC ,HRB, HRA, HV,HB,HS |
| Measuring Range | (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB |
| Measuring Direction | 0~360° |
| Indicating Error | HLD:±5; HRC:±1; HB:±4 |
| Language | Option Chinese, English, German, Portuguese, Turkish |
| Memory | 500 Groups test maximum |
| Printer | Optional Printer |
| Shell Material | Plastic |
| Statistics | Average value, min-max ,upper-lower limits |
| Data-Output | RS-232 |
| Impact Device | D (standard) |
| Optional impact Devices | DC/D+15/DL/G/C/E |
| Work piece radius (convex/concave) | Rmin=50mm(with support ring Rmin=10mm) |
| Min. Workpiece weight | 2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device |
| Workpiece min. thickness couple | 5mm,expect with impact device G:10mm,C:1mm |
| Workpiece min. case hardened depth | 0.08mm except C impact device 0.2mm and impact device 1.2mm |
| Dimension | 148mm×72mm×30mm |
| Power Supply | AA/3V |
| Operating Temperature | 0 ℃ to 40 ℃ |
| Weight | 220g (Excluding impact device and printer) |
Standard Delivery
| Standard Delivery | Code# | Standard Delivery | Code# |
| Instrument Main Body | 852-120 | RS-232 Data cable | 852-810 |
| Impact device type D | 852-410 | SINOWON certificate | SH-200 |
| Hardness Block(750-830)HLD | 852-630 | Charger | 852-850 |
| Cleaning brush | 852-860 | Accessories Box | 852-900 |
| Instrument Manual | SH-200 |
Optional Accessories
| Optional Accessories | Code# | Optional Accessories | Code# |
| Hardness Block(460-540)HLD |
852-640
|
printer paper
|
852-840
|
|
I Optional Impact device type
|
DL, DC, D+15, C, E, G
|
Software Data Pro
|
852-380
|
| Optional Support Ring | 852-510 |
Measuring Range/Material
| Material | HLD | HRB | HRC | HB | HV | HSD |
| Steel and cast steel | 300-900 | 38-100 | 20-68 | 81-654 | 81-955 | 32-100 |
| Cold work tool steel | 300-840 | — | 20-67 | — | 80-898 | — |
| Stainless steel | 300-800 | 46-101 | — | 85-655 | 85-802 | — |
| Grey cast iron | 360-650 | — | — | 93-334 | — | — |
| Nodular cast iron | 400-660 | — | — | 131-387 | — | — |
| Cast aluminum alloys | 170-570 | 23-84 | — | 19-164 | — | — |
| Brass | 200-550 | 13-95 | — | 40-173 | — | — |
| Bronze | 300-700 | — | — | 60-29 | — | — |
| Copper |
200-690 |
— | — |
45-315 |
— | — |
