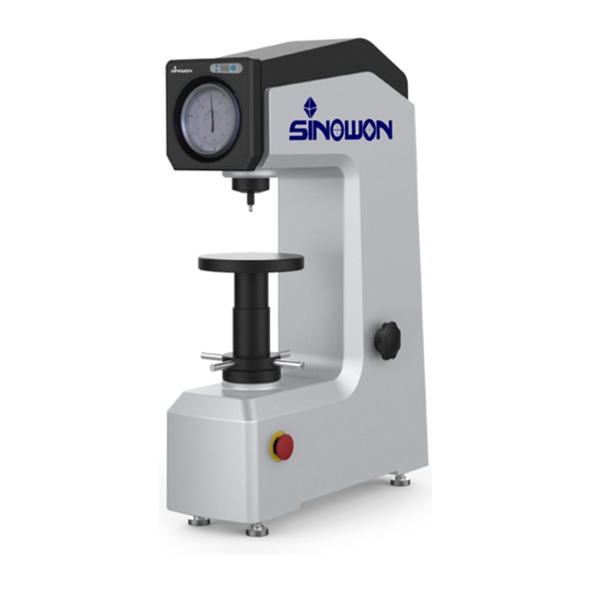

Sinowon Motorized Superficial Rockwell Hardness Tester DigiRock MS2 Series
High Accuracy Superficial Rockwell Hardness Tester for Rockwell Hardness Testing by MSP Metrology (M) Sdn Bhd from Sinowon China
Features
High Accuracy Analogue Gauge
MS2 analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution.
Much More Convenient
DigiRock MS2 dwell time from 1to 60s can be setup by the “time key” on the panel , it is much convenient than the setup on the manual hardness tester
Better Design and Material
MS2 force knob adopts the metal material to replace the plastic, it largely improves the instrument using-life. The loading, dwell and unloading is buffering by electronic motor automatically, doesn’t need the operator to handle it, it eliminates the human operation error maximum.
Product Features
-
DigiRock MS2 analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution;
-
DigiRock MS2 dwell time from 1to 60s can be setup by the “time key” on the panel , it is much convenient than the setup on the manual hardness tester;
-
DigiRock MS2 force knob adopts the metal material to replace the plastic,it largely improves the instrument using-lifet;
-
DigiRock MS2 loading, dwell and unloading is buffering by electronic motor automatically ,doesn’t need the operator to handle it , it eliminates the human operation error maximum;
-
DigiRock MS2 intenter protector is available to improve the using lifetime of indenter.
Applications
- Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
- Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
- Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
| Product | Electronic Superficial Rockwell Hardness Tester |
| Model | DigiRock MS2 |
| Code# | 811-220 |
| Rockwell Scales | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Preliminary Test Force | 3Kgf(29.42N) |
| Test Force | 15Kgf(147.1N), 30Kgf(294.2N), 45Kgf(441.3N) |
| Dwell Time | Adjustable 1 ~ 60 sec |
| Hardness Indication | Analogue Display |
| Resolution | 0.5HR |
| Loading Control | Electronic |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Dimension(L x W x H) | 546 x 182 x 755mm |
| Packing Dimension | 620 x 460 x 870mm |
| Power supply | AC 220V/50Hz; AC110V/60Hz |
| Gross/Net Weight | 120kg/90kg |
| Execution Standard | GB/T230, JIS Z2245, EN-ISO 6508 , ASTM E-18 |
| Product Name | Code MS2 |
| Instrument Main Body | 811-220 |
| Hardness Block (57-70) HRC | 811-671T |
| Hardness Block (20-33) HRC | 811-661N |
| Hardness Block (85-100) HRB | 811-671N |
| Ø1.588mm Ball Indenter | 811-411 |
| Ø1.588mm Steel Ball | 811-421 |
| Cone Diamond Indenter | 811-401 |
| Ø 150mm Flat anvil | 811-541 |
| Ø 40mm V-shape Anvil | 811-511 |
| Weight A | 811-741 |
| Weight B | 811-751 |
| Weight C | 811-761 |
| Accessories Box | 811-901 |
| Anti-dust Cover | 811-911 |
| Qualified Certificate | DigiRock MS2 |
| Instrument Manual | DigiRock MS2 |
