Imada Tension Load Cells Series
The Imada Load Cells, also known as “Load Transducers” or “Load Sensors” are sensor that detects force or torque and converts its magnitude into an electrical signal. Presented by MSP Metrology (M) Sdn Bhd from Imada Japan.
Features

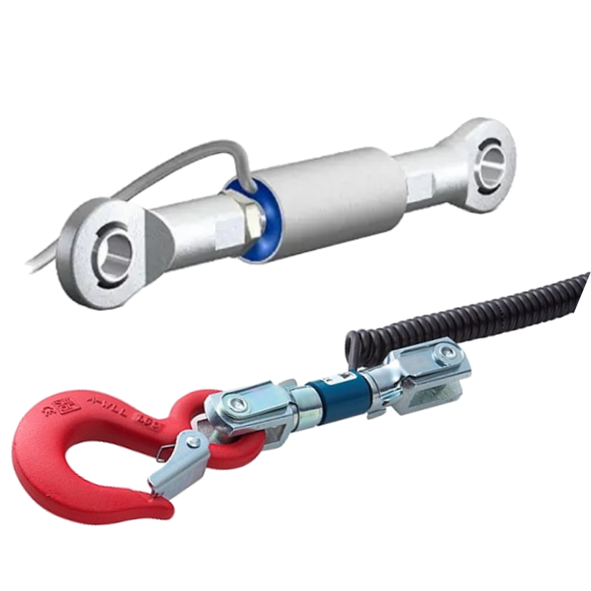

Tension Load Cells
Tension load cell is designed to measure tension effortlessly.
High Capacity Tension Load Cells
High Capacity Type Load Cell
ZU series
High-capacity tension load cell carries waterproof and dustproof protection class IP67 (Ingress Protection 67 Ratings), with capacity of 20kN. With two rods included, it attaches a sample to the rod ends and measure the tension force.
- Ideal for high capacity tension testing as it is easy to hang a sample by a shaft
- Enables measurement applications in dusty or wet environment due to IP67 approval
- Separated sensor model force gauges with a dedicated sensor available for a certain measurement purpose
- eZ-Connect series (interchangeable sensors for using with one amplifier eZT) available for a wide range of testing
| Model | Capacity |
| ZU-10kN | 10kN |
| ZU-20kN | 20kN |
| Capacity | 10kN ~ 20kN |
| Accuracy | ±1.0%F.S. or less |
| Size | Approx. ∅30 x H210~ ∅39 x H234mm |
| Cable Length | Approx. 5m |
Crane Scale Type Load Cells

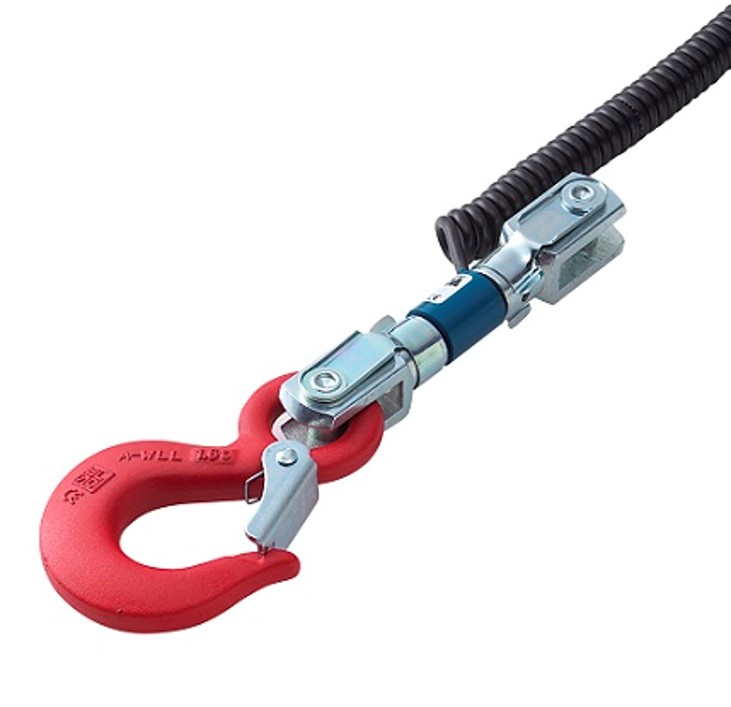

Crane Scale Type Load Cell
ZW1-10kN
Load cells for tension with hook attached and can be used as a crane scale. They are lightweight but with capacity of 10kN.
- Ideal for high capacity tension testing as it is easy to hang a sample through the hook
- Enables measurement applications in dusty or wet environment due to IP67 approval
- Separated sensor model force gauges with a dedicated sensor available for a certain measurement purpose
- eZ-Connect series (interchangeable sensors for using with one amplifier eZT) available for a wide range of testing
| Model | Capacity |
| ZW1-10kN | 10kN |
| Capacity | 10kN |
| Accuracy | ±1.0%F.S. or less |
| Size | Approx. W79 x L250mm |
| Cable Length | Approx. 0.5 ~ 2m (Curl cable) |
