Imada High Functionality Type Screw Cap Torque Testers DTXA Series
Imada High Functionality Type Screw Cap Torque Testers DTXA series is standard type offering highly repeatable torque measurements with 50N-cm to 10N-m(1000N-cm) capacity. Presented by MSP Metrology (M) Sdn Bhd from Imada Japan.
Features
DTXA Series
High Functionality Type Screw Cap Torque Testers (Torque Gauge)
High-function screw cap torque tester has capacity of 50N-cm to 1000N-cm (10N-m). Capable of measuring opening and closing torque of container lids such as PET bottles and jars. In addition to the high measurement repeatability by high-speed sampling and various data output methods of the standard type (DTXS series), it features angle input/output and USB memory connection. Next Series with firmware Ver. 5 or later offers improved measurement stability due to low noise, and expandability and convenience through additional functions (firmware download) and various software and instruction manual from the dedicated website (IMADA-Connected .com).
- High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of torque
- Ideal for measuring opening/closing torque of various samples such as bottles and bins
- Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
- Handles a wide range of samples with various optional tables and attachments
- Equips additional functions such as angle I/O (angle meter required), direct connection to USB flash drive, and 1st and 2nd peak value detection
Feature 1: Saves data to the internal memory

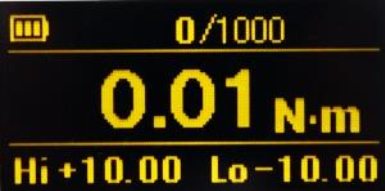

Saves data to the internal memory. (Max.1000 data)
Enables to print out the all saved data by using RS232C printer
Feature 2: High repeatability by high speed sampling
The high speed data sampling rate (2000 data / sec) captures momentary force and digitizes it.
It captures the right max value and enhances repeatability of repeat test.
Feature 3: Enables to measure various samples by various attachments

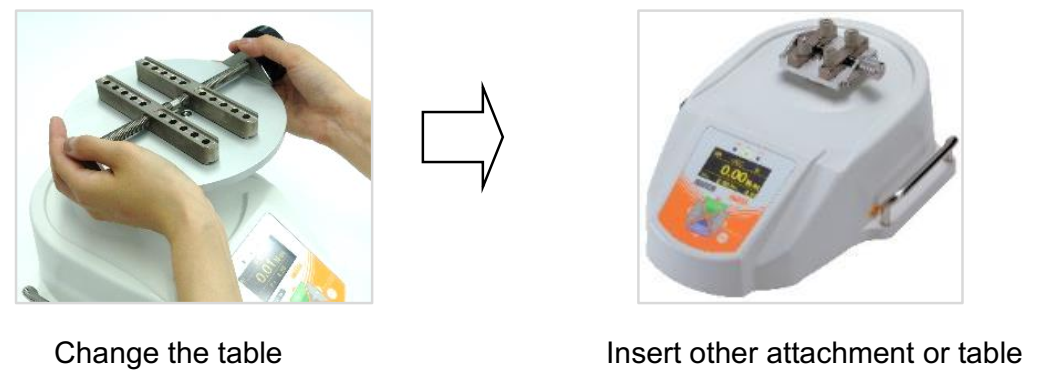

Changeable pins, tables and attachments. The users can choose the most suitable combination for their sample

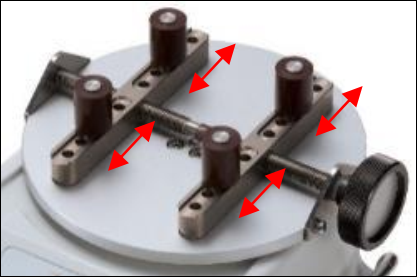

The pin types and the positions
are changeable.
Feature 4: Useful functions improving work efficiency
Organic Electroluminescence Display
The display is visually clear as the user can see it from the side or in a dark place.
Various Display
Time display
Easy and certain data managements

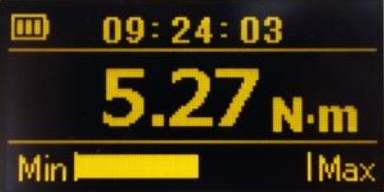

Bar graph
For prevention of breaking the sensor(over load). (*1)

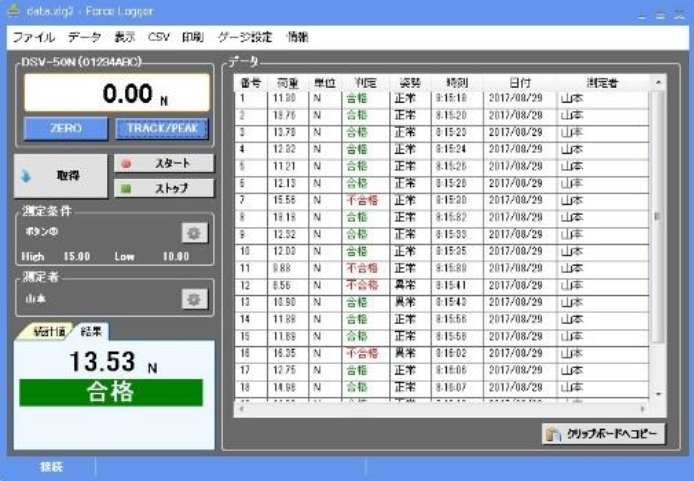

Captures Data to PC by included software
Display Force value/Date and time/ OK/NG judgment by connecting PC via USB
Stable Body Fixation
The body can be fixed on a desk with the carry handle holes. It supports testing stable.
Specifications
| Model | DTXA |
| Outline | Advanced model with additional functions of DTXS series. Such as input/output angles and saving to USB flash drive etc. |
| Accuracy | ±0.5%F.S.±1digit |
| Unit of measurement | N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in (Unit switching is possible.)(*1) |
| Display | 4-digit |
| Display update | 16 times /sec |
| Sampling rate | Maximum 2000 data/ sec(*2) |
| Battery | 8 hours (2 hours full charge)(*3) |
| Safe overload rating | Approx. 200% |
| Operating Environment | Temperature: 0 – 40 degree Celsius Humidity: 20 -80%RH |
| Function | Customized display(header and footer) / Peak hold(Clockwise and Counterclockwise)/ Internal memory(1000 point data)） / Comparator (OK or NG judgment)/ Reversible display/ Sign inversion/ Zero clear timer/ +NG alarm/ Off timer(Auto power off)/ Dumping/ Time display/ setting lock |
| 1st2nd peak / Angle detection at torque peak value(*4) / Angle zero reset at selected torque(*4) | |
| Output | USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm |
| Sub comparator 2 steps (output of large or small judgment), USB flash drive, Angle(displacement) | |
| Overload warning | Approx.110%F.S. (Warning message and alarm) |
| External connecting switch | SEND (a point of contact holding), Zero reset, Peak ON/OFF setting |
| Weight | Approx. 3.0kg (No table model), Approx. 4.5kg (Included standard table and pins) |
| Dimensions | See [Dimensions] |
| Accessory | AC adapter, Inspection certificate, CD driver (including simple software for data logging),USB cable, Carrying case, L wrench |
| USB flash drive adapter(*6) | |
| Approved standard | JIS S 0022 (2001): Guidelines for all people including elderly and people with disabilities — Packaging and receptacles — Test methods for opening “6.3 Screw top receptacle” |
*1 These are the specifications for International model. Please note that this unit is different from Japanese domestic model.
*2 Up to 100 data/sec. is saved in USB memory (selectable among 1, 50, and 100 /sec)
*3 The battery is more consumed when connected to USB flash drive or a displacement scale.
*4 Angle(displacement) scale is necessary to valid this function.
*5 Not always available for Mitutoyo digimatic products.
*6 USB flash drive is not included.
| Japan Model | Range | Display | Resolution |
| DTXA-0.5N-Z (*1) (*2) | 0.5 N-m (50N-cm) | 50.00N-cm | 0.01N-cm |
| DTXA-2N | 2 N-m (200N-cm) | 2.000N-m (200.0N-cm) | 0.001N-m (0.1N-cm) |
| DTXA-5N | 5 N-m (500N-cm) | 5.000N-m (500.0N-cm) | 0.001N-m (0.1N-cm) |
| DTXA-10N | 10N-m (1000N-cm) | 10.00N-m (1000N-cm) | 0.01N-m (1N-cm) |
| DTXA-2N-Z (*1) | 2 N-m (200N-cm) | 2.000N-m (200.0N-cm) | 0.001N-m (0.1N-cm) |
| DTXA-5N-Z (*1) | 5 N-m (500N-cm) | 5.000N-m (500.0N-cm) | 0.001N-m (0.1N-cm) |
| DTXA-10N-Z (*1) | 10N-m (1000N-cm) | 10.00N-m (1000N-cm) | 0.01N-m (1N-cm) |
