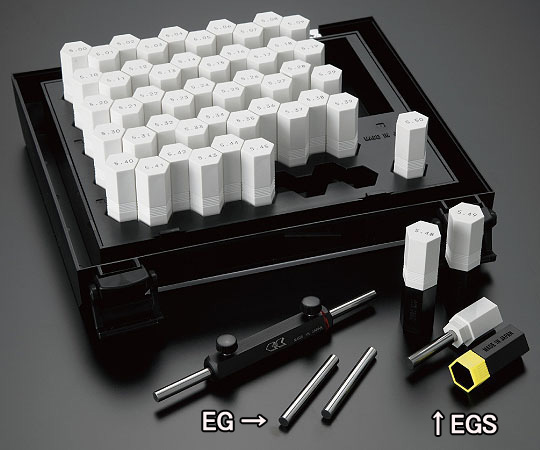

Eisen Pin Gauge EGS Series
Eisen Pin Gauge EGS Series – Packages of tungsten carbide pin gauges (with Handle) up to 1.49mm for plastic cases and 1.50mm or larger on laser engraved presented by MSP Metrology (M) Sdn Bhd from Eisen Japan
Features
Packages of tungsten carbide pin gauges
Specifications
- Sizes are indicated on the plastic cases for gauges up to 1.49mm and are laser engraved on gauges 1.50mm and larger.
- Refer to the ES series for EGS series handle specifications
Details of Series
| Set No. | Step (mm) | Set Size (mm) | Number of pins |
| EGS-0A | 0.01mm | 0.20 0.21 … 0.49 0.50 | 31 |
| EGS-0B | 0.01mm | 0.50 0.51 … 0.99 1.00 | 51 |
| EGS-1A | 0.01mm | 1.00 1.01 … 1.49 1.50 | 51 |
| EGS-1B | 0.01mm | 1.50 1.51 … 1.99 2.00 | 51 |
| EGS-2A | 0.01mm | 2.00 2.01 … 2.49 2.50 | 51 |
| EGS-2B | 0.01mm | 2.50 2.51 … 2.99 3.00 | 51 |
| EGS-3A | 0.01mm | 3.00 3.01 … 3.49 3.50 | 51 |
| EGS-3B | 0.01mm | 3.50 3.51 … 3.99 4.00 | 51 |
| EGS-4A | 0.01mm | 4.00 4.01 … 4.49 4.50 | 51 |
| EGS-4B | 0.01mm | 4.50 4.51 … 4.99 5.00 | 51 |
| EGS-5A | 0.01mm | 5.00 5.01 … 5.49 5.50 | 51 |
| EGS-5B | 0.01mm | 5.50 5.51 … 5.99 6.00 | 51 |
| EGS-6A | 0.01mm | 6.00 6.01 … 6.49 6.50 | 51 |
| EGS-6B | 0.01mm | 6.50 6.51 … 6.99 7.00 | 51 |
| EGS-7A | 0.01mm | 7.00 7.01 … 7.49 7.50 | 51 |
| EGS-7B | 0.01mm | 7.50 7.51 … 7.99 8.00 | 51 |
| EGS-8A | 0.01mm | 8.00 8.01 … 8.49 8.50 | 51 |
| EGS-8B | 0.01mm | 8.50 8.51 … 8.99 9.00 | 51 |
| EGS-9A | 0.01mm | 9.00 9.01 … 9.49 9.50 | 51 |
| EGS-9B | 0.01mm | 9.50 9.51 … 9.99 10.00 | 51 |
※Pin gauges also sold individually. Special sizes are also available.
※No class settings.
