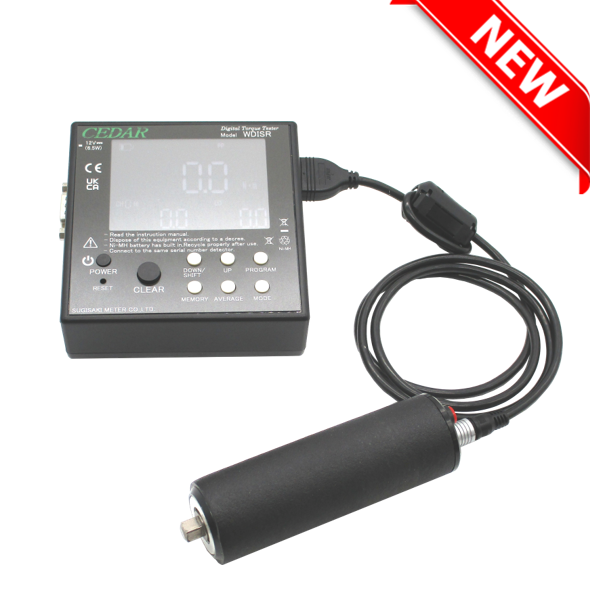

Cedar Torque Tester WDISR-RL Series (Separate Type)
The WDIS series is easier to use and has higher performance. Manual torque driver and wrench management, automatic semi-automatic tool management, inspection of screw tightening and relaxation torque. Presented by MSP Metrology (M) Sdn Bhd from Cedar Japan.
Features
WDISR-RL series (-IPS005/05/6/10)
It works with a personal computer or PLC to manage torque measurement more highly.
- A color display that can display various information.
- Data output is standard equipment for both USB and RS232C.
- Numerical values such as pass / fail conditions can be set up to 10 channels.
- The pass / fail judgment is displayed in color for easy understanding.
- Built-in battery drive.
- The WDISR-RL series includes WDISR-RL005, WDISR-RL05, WDISR-RL6, and WDISR-RL10.
Saving and managing screw tightening data
Saving screw tightening data Data transfer to personal computer
Various measurements of screw tightening
Screw break test, yield point estimation, sampling inspection, Measurement of return torque, measurement of starting torque of rotating body, etc.
Color Display that can Display Various Information
Data output is Standard Equipment for both USB and RS232C
Setting Various Measurement Parameters
Works with PC and PLC
Command list
Clear signal: Clears the display and outputs the held numerical value as data and saves it in memory.
Measurement mode: Change the measurement mode.
Measurement channel: Change individual channels for which conditions such as pass / fail judgment are set.
Peak hold upper limit: Change the pass / fail judgment upper limit of the current channel.
Peak hold lower limit: Change the pass / fail judgment lower limit of the current channel.
Peak down lower limit: Change the peak down judgment start lower limit of the current channel.
Real-time output lower limit: Changed the output lower limit of real-time output.
Auto clear time: Changed the time to automatically clear after the measurement is completed.
Buzzer notification: Changed the buzzer notification method.
Full Specifications
| Specifications | WDISR-RL005 | WDISR-RL05 | WDISR-RL6 | WDISR-RL10 | |
| Applications | It is a torque measuring equipment to measure the tightening torque and loosening torque of screws. | ||||
| Power Supply | Internal battery (12 hours continuous operation time, 3 hours charging time) | ||||
| Rate Input Voltage | 12DV | ||||
| Measuring Range (At time of Track) | 0.20 ~ 50.00 mN･m (Note 1) | 2.0 ~ 500.0 mN･m | 0.020 ~ 6.000 N･m | 0.20 ~ 10.00 N･m | |
| Measurement Unit | gf-cm ozf-in mN-m cN-m |
kgf-cm lbf-in mN-m cN-m |
kgf-cm lbf-in N-m cN-m |
||
| Accuracy | ±2.0% ±3mN-m | ±0.5% (if 499 or less digit ±3 digit) | |||
| Sampling Rate | 1000 data / sec | ||||
| Measuring mode | PP Peak hold | Measure the peak torque (with data output) | |||
| PD Peak down | Measure the first peak torque (with data output) | ||||
| C Real-time output | The data output cycle is approximately 180 data / 1 second. (with data output) | ||||
| TR Track | Mainly used for calibration. (without data output) | ||||
| Data Output | Wired (ASCII format) | ||||
| Memory Size | 800 data | ||||
| Auto-power Off | Power off after 10 minutes of non-use | ||||
| Accessories, Attachments | Detector (refer table below) | ||||
| Detector Cable | |||||
| Plus bit #0, #1 | Plus bit #1, #2 | ||||
| Bit holder | |||||
| One way bit holder | |||||
| Auxiliary handle x2 | |||||
| AC adaptor | |||||
| Rubber foot | |||||
| Result of calibration, Certification on calibration, Traceability system figure | |||||
Note 1: WDISR-RL005 measurements are in 0.05 mN-m increments.

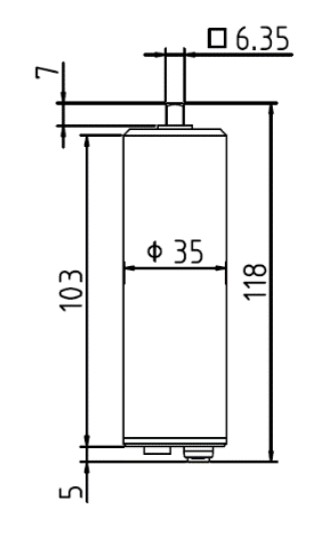

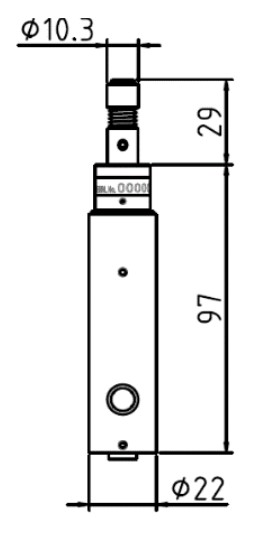

Detector
| Model | RL005/5 | RL6/10 |
 |
 |
|
| Socket | ∅4 (HIOS Shank) | 6.35sq (Square drive) |
