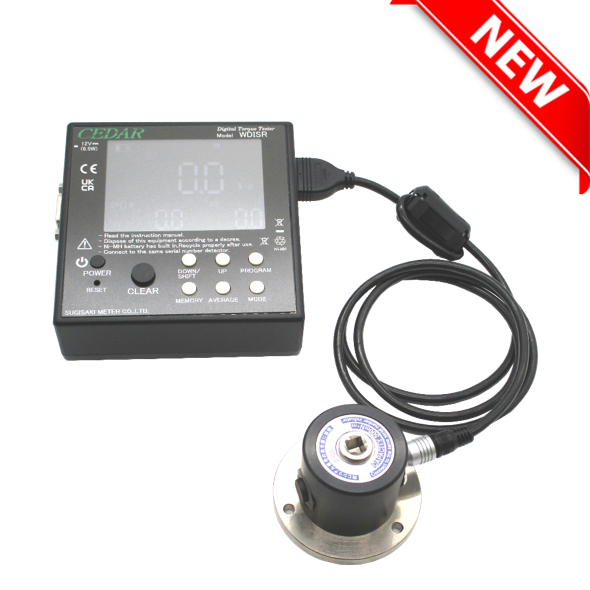

Cedar Torque Tester WDISR-IP Series
The DIS series is easier to use and has higher performance. Manual torque driver and wrench management, automatic semi-automatic tool management, inspection of screw tightening and relaxation torque. Presented by MSP Metrology (M) Sdn Bhd from Cedar Japan.
Features
WDISR-IP series (-IP05/5/50/200/500/1500)
For managing manual torque drivers and wrenches.
The “DIS series” has become easier to use and has higher performance.
- Color display that can display various information.
- Data output is standard equipment for both USB and RS232C.
- A series of diverse lineups from up to 500mN・m (0.5N・m) to 1500N・m.
- Numerical values such as pass / fail conditions can be set up to 10 channels.
- Pass / fail judgment is clearly displayed in color.
- Built-in battery drive.
- The WDISR series includes WDISR-IP05, WDISR-IP5, WDISR-IP50, WDISR-IP200, WDISR-IP500, and WDISR-IP1500.
Color Display that can Display Various Information
Data output is Standard Equipment for both USB and RS232C
Setting Various Measurement Parameters
Works with PC and PLC
Command list
Clear signal: Clears the display and outputs the held numerical value as data and saves it in memory.
Measurement mode: Change the measurement mode.
Measurement channel: Change individual channels for which conditions such as pass / fail judgment are set.
Peak hold upper limit: Change the pass / fail judgment upper limit of the current channel.
Peak hold lower limit: Change the pass / fail judgment lower limit of the current channel.
Peak down lower limit: Change the peak down judgment start lower limit of the current channel.
Real-time output lower limit: Changed the output lower limit of real-time output.
Auto clear time: Changed the time to automatically clear after the measurement is completed.
Buzzer notification: Changed the buzzer notification method.
Full Specifications
| Specification | WDISR-IP05 | WDISR-IP5 | WDISR-IP50 | WDISR-IP200 | WDISR-IP500 | WDISR-IP1500 | |
| Applications | It is a torque measuring equipment to measure the tightening torque of tightening tools (torque screwdriver, torque wrench, etc.) in screw tightening work. | ||||||
| Power Supply | Internal battery (12 hours continuous operation time, 3 hours charging time) |
||||||
| Rate Input Voltage | 12V DC | ||||||
| Measuring Range (At time of Track) |
2.0 ~ 500 mN･m
|
0.020 ~ 5 N･m
|
0.20 ~ 50 N･m
|
2.0 ~ 200 N･m
|
2.0 ~ 500 N･m
|
20 ~ 1500 N･m
|
|
| kgf-cm lbf-in mN-m cN-m |
kgf-cm |
kgf-cm |
kgf-m |
||||
| Accuracy | ±0.5% (499 or less digit ±3 digit) *Maintain a constant temperature during measurement |
||||||
| Sampling Rate | 1000 data / sec | ||||||
| Display | The 4 figures digital display of LCD | ||||||
| The measurement direction | CW-CCW (right and left) | ||||||
| Measuring mode |
PP Peak hold | Measure the peak torque (with data output) | |||||
| PD Peak down | Measure the first peak torque (with data output) | ||||||
| C Real-time output |
The data output cycle is approximately 180 data / 1 second. (with data output) |
||||||
| TR Track | Mainly used for calibration. (without data output) | ||||||
| Data Output | Wired (ASCII format) | ||||||
| Memory Size | 800 data | ||||||
| Auto-power Off | Power off after 10 minutes of non-use | ||||||
| Accessories, Attachments | Detector (refer table below) | ||||||
| Detector cable | |||||||
| AC adaptor | |||||||
| Rubber foot | |||||||
| Result of calibration, Certification on calibration, Traceability system figure | |||||||
| – | – | – | – | – | T-knob x 2 | ||
Detector

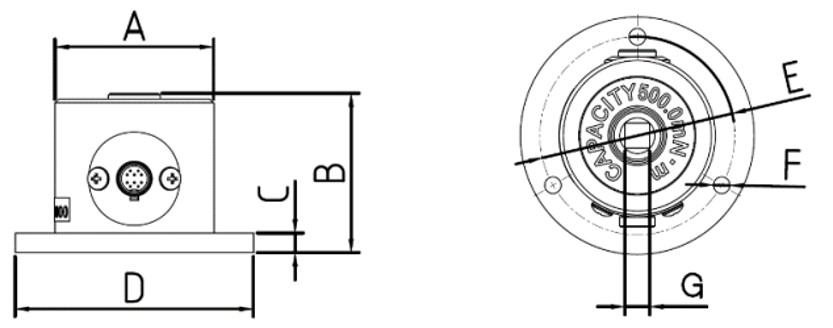

| Model | IP05/5 | IP50 | IP200 | IP500 | IP1500 |
 |
|||||
| A Detector Shape | ∅40mm | ∅50mm | ∅60mm | ∅80mm | ∅100mm |
| B Height | 41.2mm | 63mm | 79mm | 98mm | 102.5mm |
| C Thickness | 5mm | 10mm | 15mm | 15.5mm | 33mm |
| D Flange Size | ∅60mm | ∅90mm | ∅108mm | ∅140mm | ∅170mm |
| E Hole Position | ∅50mm | ∅74mm | ∅90mm | ∅116mm | ∅140mm |
| F Hole Size | ∅4.2mm (Every 120°) |
∅6.3mm (Every 120°) |
∅8.3mm (Every 120°) |
∅10.5mm (Every 120°) |
∅13mm (Every 60°) |
| G Socket | 6.35sq | 9.5sq | 12.7sq | 19sq | 25.4sq |
| Weight | Around 200g | Around 600g | Around 1kg | Around 2.5kg | Around 7.2kg |
