Vitiny UM30 Contact Angle Machine® UM Series
Vitiny UM30 Contact Angle Machine UM Series is a 4K Ultra HD custom microscope instrument used to measure the wettability of a surface by MSP Metrology (M) Sdn Bhd from Vitiny Taiwan.
Features
Vitiny UM30
CONTACT ANGLE MACHINE
A contact angle machine (also called a contact angle goniometer) is an instrument used to measure the wettability of a surface — in simple terms, how well a liquid spreads or beads up on a solid surface.
CONTACT ANGLE AND WETTABILITY

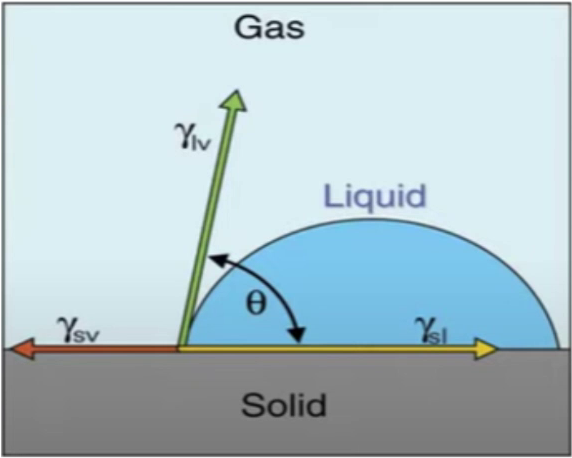

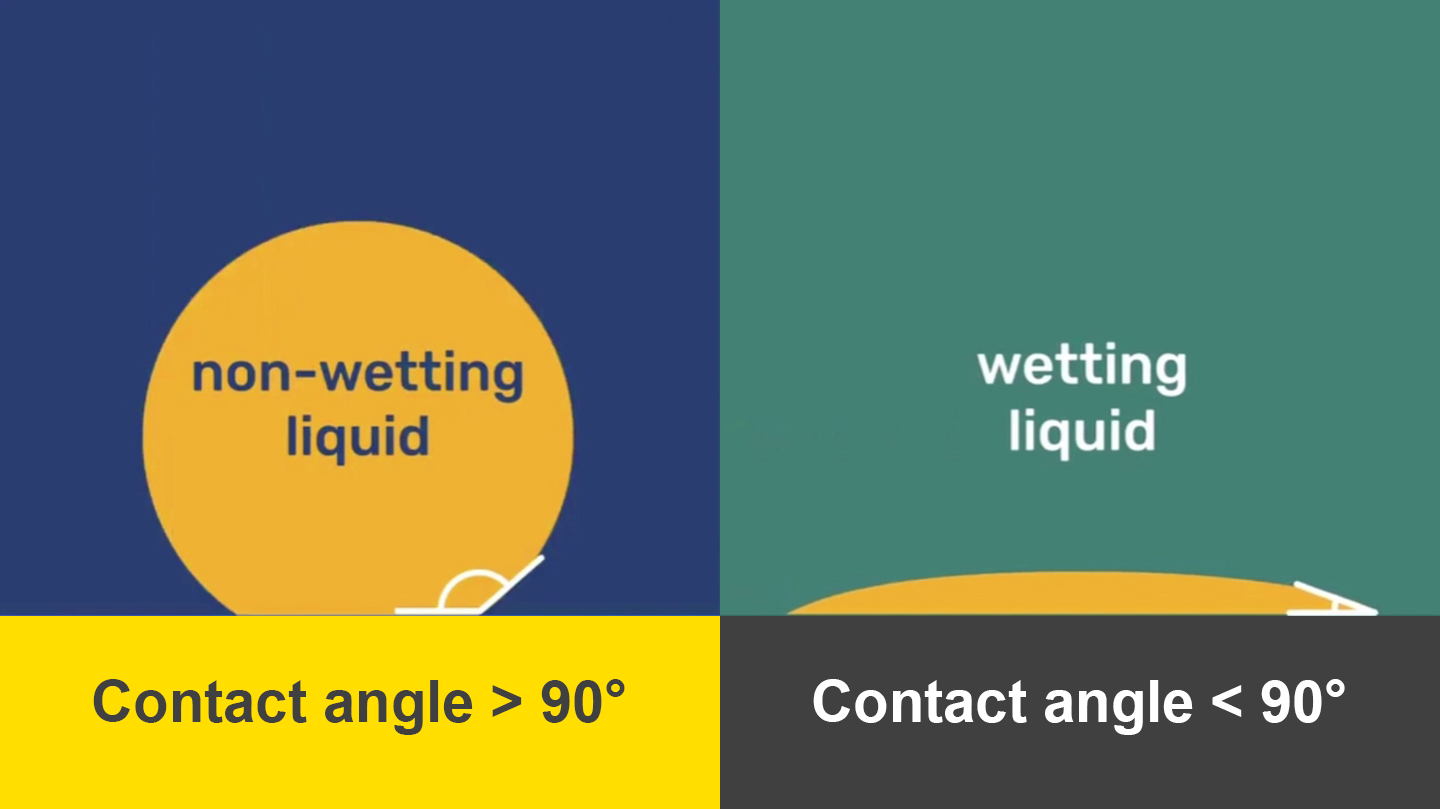

Contact angle is an angle formed by a liquid at the three-phase boundary where a liquid, gas and solid intersect.
- θ is the contact angle
IT’S A KEY TO:
- Ensuring proper coating adhesion
- Optimizing material performance
- Controlling manufacturing processes
Showcase

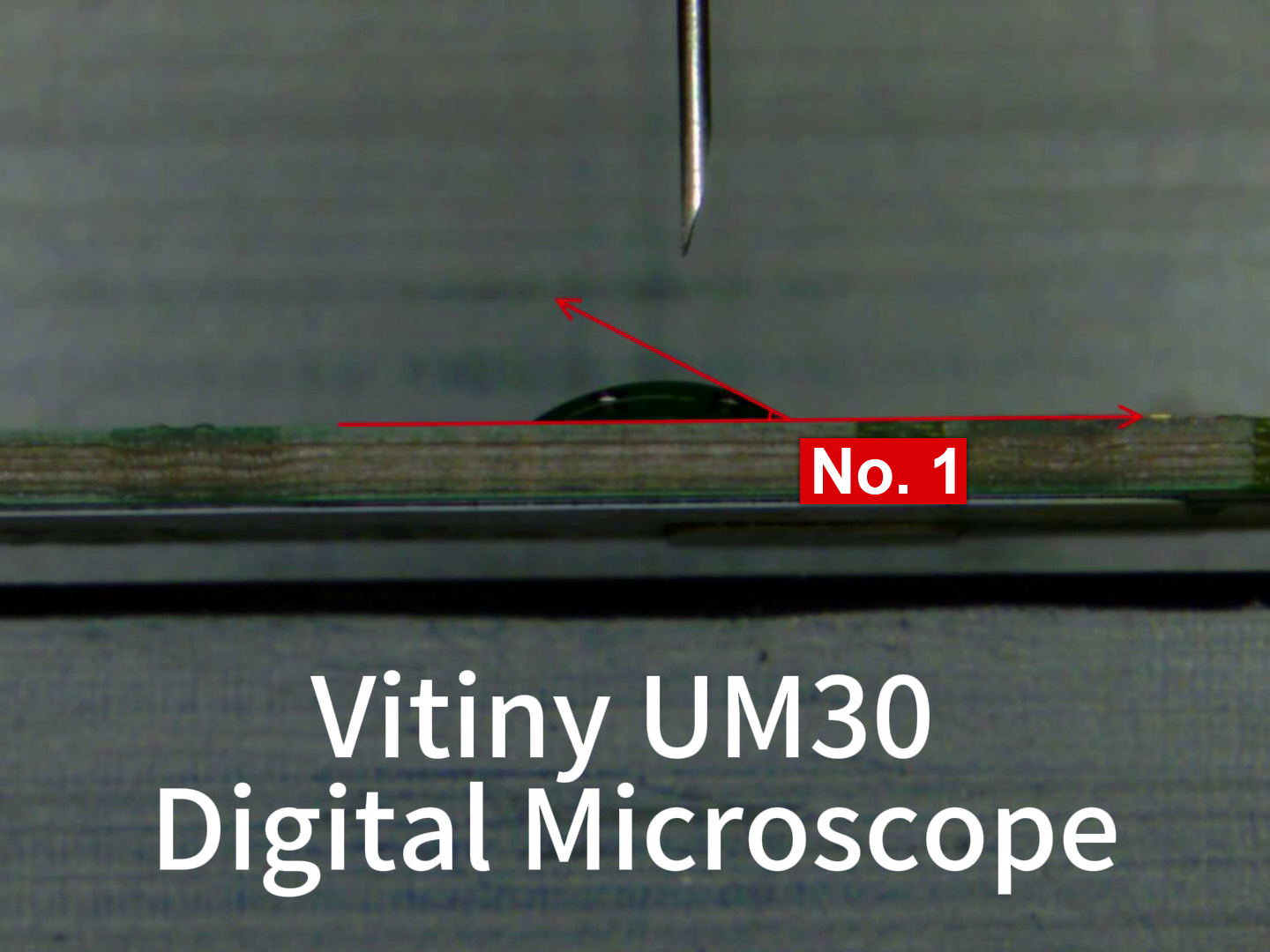

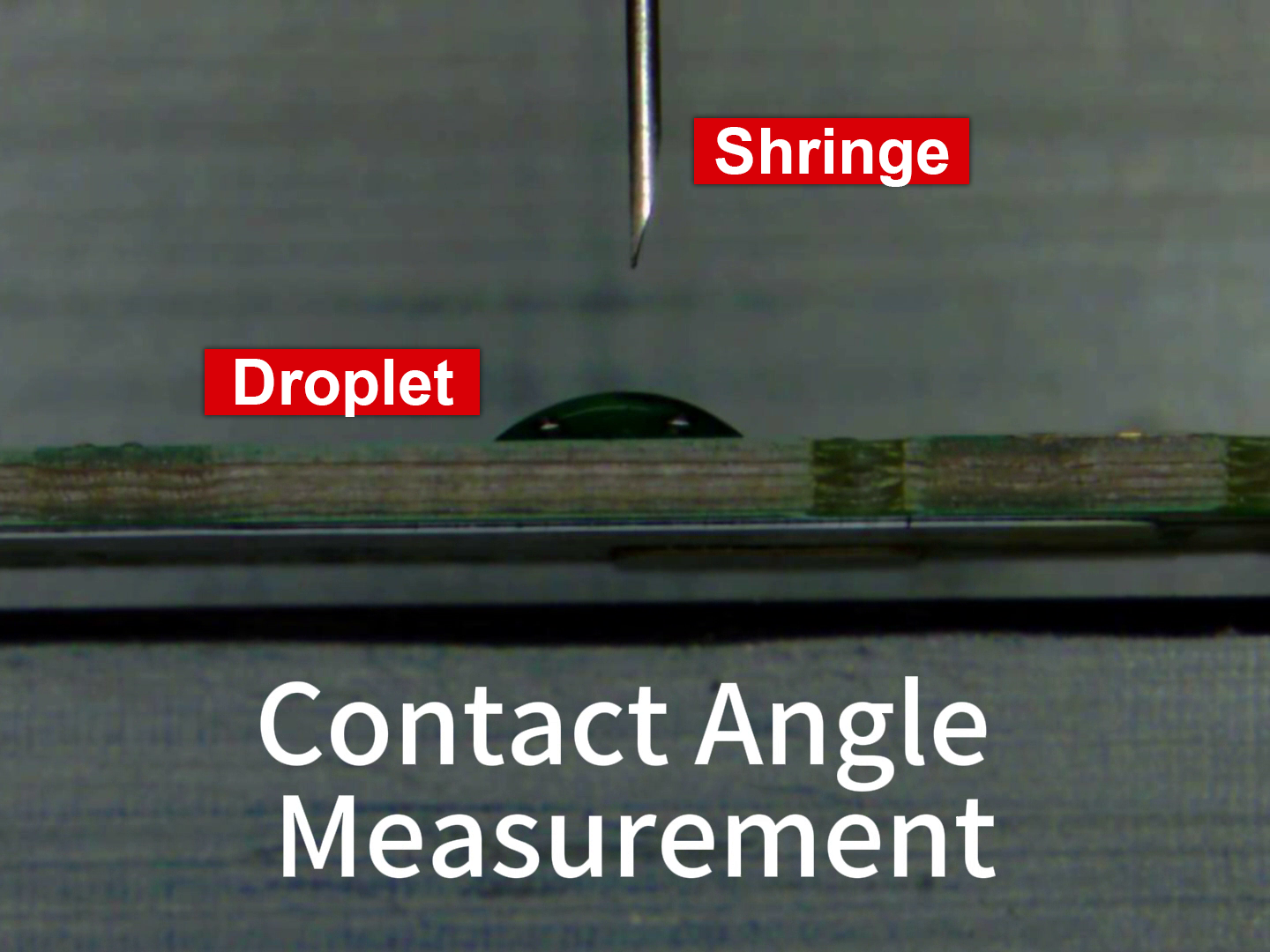

CONTACT ANGLE MEASUREMENT WITH VITINY UM30
TECHNICAL INFORMATION

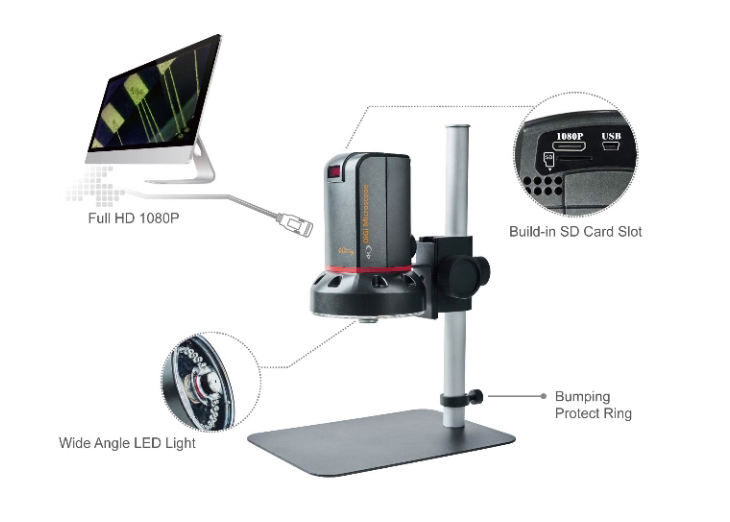

MICROSCOPE SPECIFICATIONS (UM30)
| Feature | specification |
| Magnification | 13x-140x on 24″ Monitor |
| Working Distance | 22mm – 214mm |
| CMOS Sensor | 4K Ultra HD Resolution |
| Interface of Output | 1080P Full HD, USB 2.0 & Micro SD Card Slot |
| Focus System | IR Remote Control, Alternative Auto and Manual Focus |
| Micro SD Card Support up to 128GB | Capture JPG |
| Light | Built-in 30 PCS of Wide Angle LED, Allow to Adjust the Brightness |

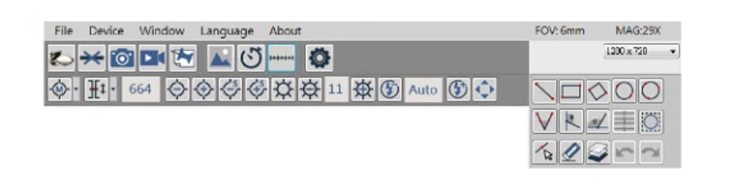

| Software Function | Auto-Calibration, 2D Measurement, Image Comparison…etc |
| Software Platform | Windows (8, 10, 11), Mac OS Big Sur or MacOS Ver 10.0+ |
| Device Dimension | 106 x 152(H)mm |
| Power Supply | DC 5V/2A, Cable Length: 180cm |

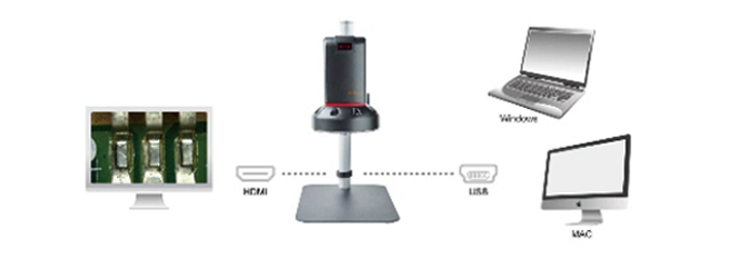

DIVERSE PLATFORM

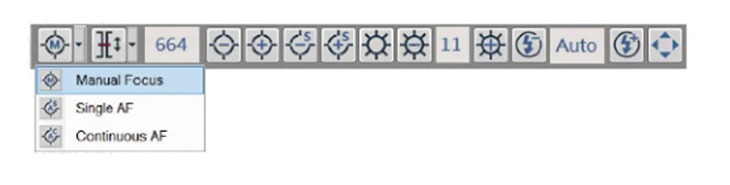

FOCUS WAY
MEASUREMENT FUNCTION

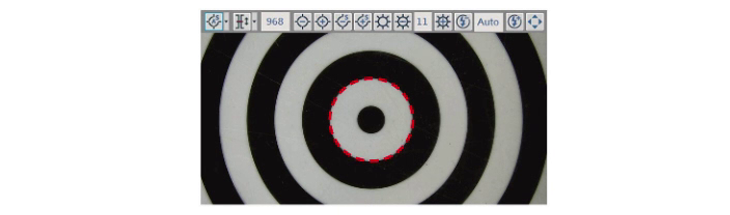

AUTO-CALIBRATION

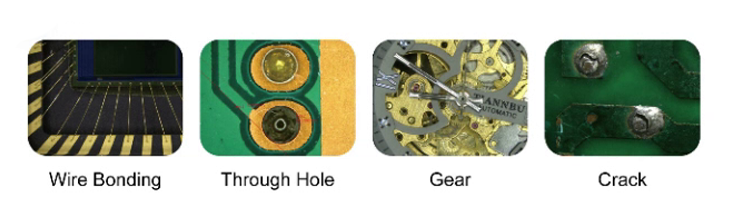

APPLICATION

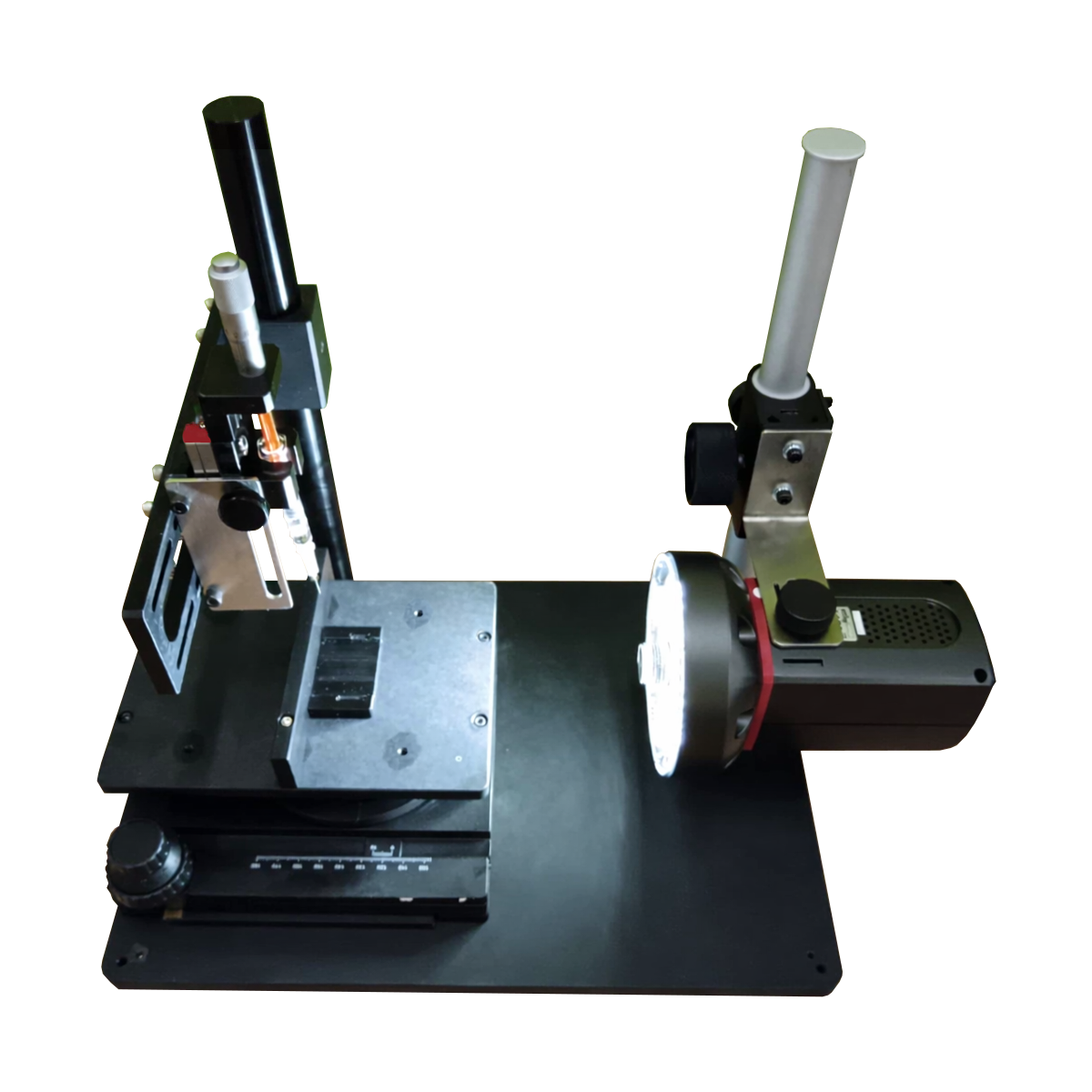

VITINY UM30 CONTACT ANGLE MACHINE
