Ash Omni Vantage® Omni Series

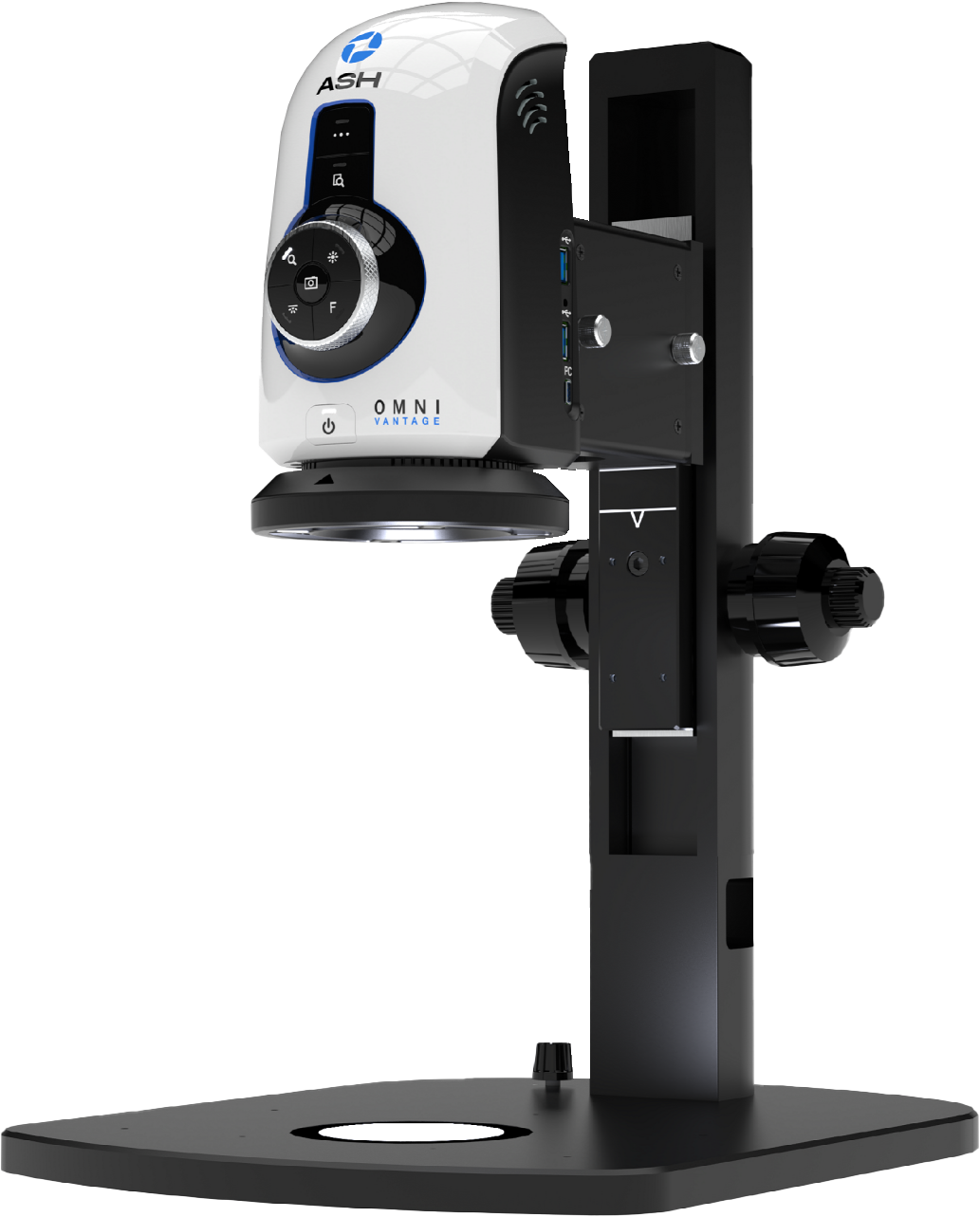

Ash Omni Vantage Omni Series is a 4K Ultra HD Smart Digital Microscope and optical inspection system with Integrated Software Apps by MSP Metrology (M) Sdn Bhd from Ashvision Ireland.
ADVANCED 4K INSPECTION & MEASUREMENT
OMNI VANTAGE
Experience inspection like never before with the Omni Vantage, a digital microscope equipped with a 4K Ultra HD camera that reveals the smallest details with unmatched clarity.
Designed with simplicity and efficiency in mind, the intuitive interface makes inspecting parts effortless, comfortable and precise and unlike traditional systems, Omni Vantage is factory-calibrated and certified at every magnification level. Adjust zoom levels without manual setup and trust your measurements every time.
The Omni Vantage comes packed with powerful features helping you identify defects faster and more accurately than ever before. From electronics and medical devices to aerospace and precision engineering, Omni Vantage revolutionises quality control, enabling professionals to detect even the most minute defects with absolute confidence.
With Omni Vantage, enjoy faster, more reliable inspections, improved operator efficiency, and streamlined workflows, all without the need for complex training.
Features
INSTANTLY TRANSFORM YOUR MANUFACTURING PROCESS
-
4K Ultra-High Definition Imaging
- Real-Time Processing
- Smart, Integrated Software Apps
- Ergonomically Designed Workflow
- Calibrated Precision at Every Zoom
- Plug & Play Performance
- Lightning-Fast, Zero-Latency
OMNI VANTAGE AT A CLOSER LOOK
Experience precision like never before with the Omni Vantage, a cutting-edge digital microscope powered by a 4K Ultra HD camera. Designed for effortless operation, it delivers crystal-clear imaging, factory-calibrated accuracy, and seamless zoom adjustments, so you can trust every measurement. Whether in electronics, medical devices, aerospace, or precision engineering, Omni Vantage helps you detect even the smallest defects with unmatched clarity and speed. Streamline your workflow, boost operator efficiency, and achieve reliable results, all without the need for complex training. Omni Vantage isn’t just a microscope, it’s a revolution in quality control.
BUILD YOUR UNIQUE OMNI VANTAGE SOLUTION
Chose the apps you need to tailor the Omni Vantage to your specific requirements. Our apps range from advanced measurement tools to help meet critical manufacturing tolerances, to comparison tools to ensure the highest production quality. 30-day free trial with each, explore as you need.
Intuitive, on-screen full 2D patented measurement application. Point to point, diameter, angle, adjustable X-Y grid, shapes and annotation features to accommodate a multitude of samples specifications. Graticule creation allows samples to be analysed against on-screen digital templates with set tolerance limits. It also enables quick go/no-go defect analysis.
Import a range of DXF files to create graticules for overlay comparison with parts. Imported DXF files can be edited and annotated on the Omni Vantage system.
View a sample with different layers all in focus at the same time. Omni automatically captures several images from 2 to 12 at different focal depths and creates an image based on the sharpest regions from each of these separate captures.
Visually compare your live sample to a stored master image in the form of a split screen. Add notes through annotation and save the comparison image for documentation and traceability. Enables rapid identification of differences between gold sample and test samples.
Create an image overlay of a master image to identify defects by overlaying and flashing the live sample image against the stored master image. Enables rapid identification of differences between gold sample and test samples.
The API is a command set facilitating communication between the Omni Vantage digital microscope and other systems or applications. It enables data exchange, control, and customization, serving to standardize access to system functionalities and data. The API enhances and extends the capabilities of the Omni 3/Inspex 3 digital microscope, ensuring optimization for specific needs.
TECHNICAL INFORMATION
| Magnification Specification | Lens Type | +5 Vantage Lens (AI100-079) | 10 Plan 1x |
| Optical | Magnification Range (X) Minimum Optical FOV (H x V mm) Maximum Optical FOV (H x V mm) |
2.7 → 61.6 x 217 x 121 9.7 x 5.5 |
18.4 → 111 29 x 16.4 4.8 x 2.7 |
| Digital | Magnification Range (X) Minimum Digital FOV (H x V mm) Maximum Digital FOC (H x V mm) Working Distance (mm) Depth of Field (mm) Video Latency (ms) |
61.6d → 123d 9.7 x 5.5 4.9 x 2.7 188 55 (Min. Zoom) 0.1 (Max. Zoom) 20 (50Hz) / 17 (60Hz) 27” 4K monitor |
111 x 221.3 4.8 x 2.7 2.4 x 1.4 81 1mm → 0.01 20/16.6 ms |
TECHNICAL SPECIFICATIONS
| Magnification Range (with supplied +5 Vantage Lens) | 2.7 → 61.6 x (Optical) 61.6d → 123d (Digital) |
| Camera Resolution | 3840 x 2160 pixels |
| Monitor Connections | HDMI/DVI |
| Monitor Requirement | 4K monitor with native resolution |
| Power | 24W |
| Dimensions | 216mm x 125mm x 136mm |
| Weight | 1.5kg |
| Operating Temperature | Storage 10°C to +60°C Operating 5°C to 40°C |
| Internal Storage | 30GB |
| Input / Output | HDMI Output USB 3.0 Ports x2 Mini USB-C Port General Purpose IO (x3 Ports) DC Power Jack 24V Ethernet Port |
| Image Capture | Internal Storage Removable USB Image Storage USB on the go (PC Connectivity) |
OMNI VANTAGE
The following list of contents are included as standard with Omni Vantage.
WHAT’S INCLUDED
- Omni Vantage
- Quadrant Controllable Ring Light
- +5 Vantage Lens
- Mouse & Mat
- Keyboard
- Power Supply
- 8K HDMI to HDMI Cable
- Mini USB Cable (for PC connection)
- USB Memory Stick (8gb)
- Grounding Cable
- 2 Arm Bracket (for stand mounting)
- Arm Receiver
- User Manual
- Cleaning Cloth
ACCESSORIES
| LENS & LIGHTING | Polarising Lens (Analyzer) 58mm |
UV Ringlight |
| Diffused LED Dome Light | ||
| ADDITIONAL ACCESSORIES | KPIII External Keypad |
