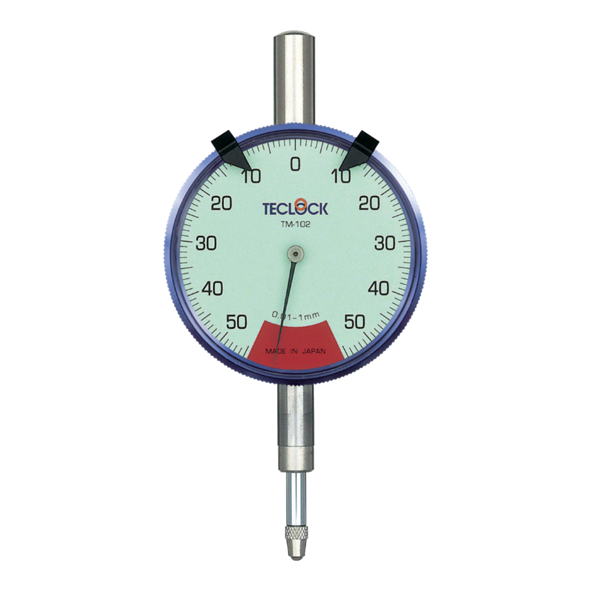

Teclock Dial Indicator,1mm/0.01 – TM-102f (One Revolution; Flat Back Type)
Teclock TM-102f – High accuracy with durability dial indicator that has stable repeatability for direct measurement. Presented by MSP Metrology (M) Sdn Bhd from Teclock Japan.
Features
Standard Type
Standard type dial indicators of graduation 0.01mm and bezel diameter 55mm.
Durable
High durability is realized with Teclock original and unique enlargement mechanism is built-in.
Accessories Attachment
Limiter is mounted as standard. Lifting lever (Option) can be mounted.
Stable Repeatability
Stable repeatability accuracy is realized with level enlargement mechanism built-in.
Dimension Table
| Model | A | B | C | D | E | F | G | H |
| TM-102f | 48 | 65 | 55 | 52 | 15.8 | 8 | 19 | 18.5 |
Unit:mm
Full Specifications
| Model | Graduation (mm) | Measuring Range (Free Stroke) (mm) | Repeatability (μm) | Indication Error (μm) | Hysteresis (μm) | Standard Contact Point | Measuring Force (N) | Weight (g) | |
| 1/10 Revolution | Total Range | ||||||||
| TM-102f | 0.01 | 1 (5) | 3 | 5 | 8 | 3 | ZS-017 | 1.4 or less | 150 |
